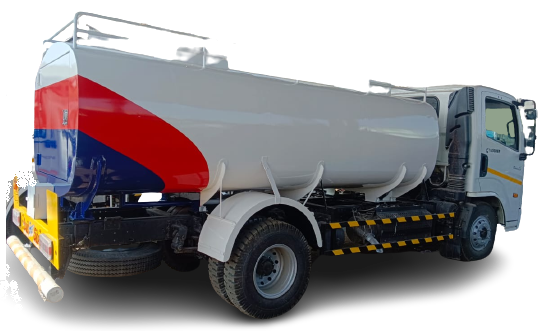

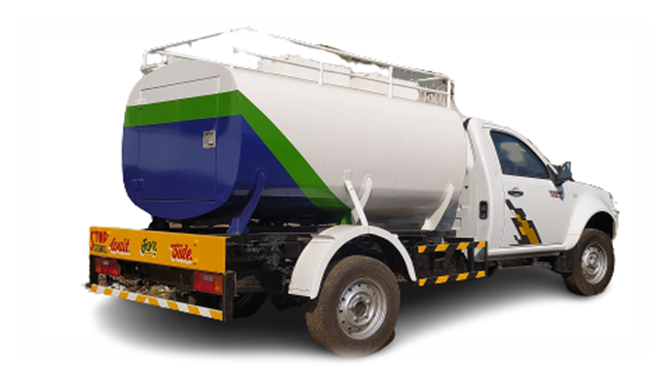

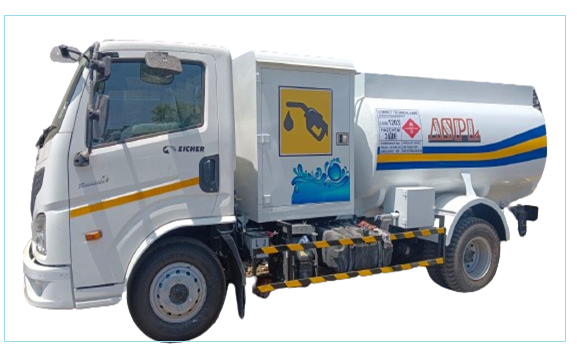

EMCUBES REFUELLERS
Product Range
| MODEL | PUMPING SYSTEM | DISPENSER | APPROVAL |
|---|---|---|---|
| MDU-1KL | 12V DC Pump | Digital PDM / MFLOW | W&M |
| MDU-1.5KL | 12V DC Pump | Digital PDM / MFLOW | W&M |
| MDU-2.5KL | 12VDC / PTO Pump | Digital PDM / MFLOW | W&M |
| MDU-6KL | PTO Pump | Digital PDM | W&M, PESO |
Tank Technical Specification
| CAPACITY | 1 KL / 1.5 KL / 2.5 KL / 6 KL |
|---|---|
| TANK DESIGN | Elliptical shape, Design as per PESO guideline |
| TANK MATERIAL | 3.15mm MS Sheet |

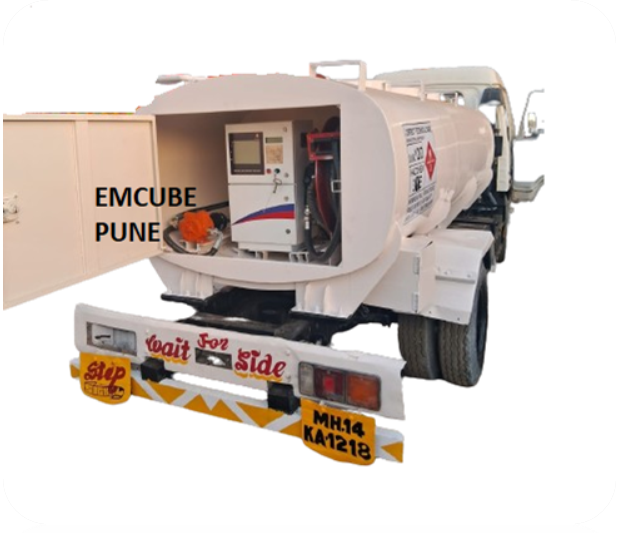

| COMPARTMENT | 03, Rear Compartment for Dispenser & Hose reel with rigid metal door & lock |
| MANHOLE | 01/02 with manhole & PESO approved safety fittings |
| TANK INLET OUTLET | Fill Point with Cap, Dip Point with Cap |
| SAFETY FITTINGS | Emergency Vent, Pressure Vacuum Valve, Emergency Shut-Off Valve (PESO Approved) |
| PUMP | Continuous Rating 12V DC Battery Geared Motor Vane Pump or PTO Driven Vane Pump |
| FLOW RANGE | 30–70 LPM (Optional 100, 200 LPM) |
| ACCESSORIES | Auto Rewind Hose Reel, Earthing Reel, Fire Extinguisher |
Dispensing System Technical Specification
| MODEL / SERIES | MFLOW |
|---|---|
| ACCURACY | +/- 0.3% |
| DIGITAL DISPLAY (30mm bright LCD with WHITE BACKLIGHT) |
1st Line: 8 Digit Liter Qty (L) 2nd Line: 8 Digit Amount (R) 3rd Line: 6 Digit Price (R/L) |
| KEYPAD | Alfa Numeric Metal Keypad, With 16x2 LCD Display For Setting |
| POWER SUPPLY | 12/24 VDC, 230V AC |
| FLOW RANGE | 50 Lpm Std Duty 70 Lpm Hi Duty |
| PUMPING SYSTEM (external pump As DU is Pressure type) |
Vane Type Pump DC (battery), AC Or PTO Operated Required Pressure 0.5 Bar - 2 Bar Filtration: 100 Mesh SS Washable |
| DELIVERY HOSE & NOZZLE | Fuel Resistant Hose 5 Mtr Long, Auto Cut Off Nozzle With Breakaway & 360° Swivel |
| ENVIRONMENTAL CONDITION |
Liquid Temperature: 0 to 40°C Operating Pressure: 0.2 to 5 bar Max Liquid Viscosity: 1–100 cSt Media: Fuel or Liquid other than water |
Additional Features
- PRESET BATCH with VEHICLE ID interlock prior to start dispensing
- BILL PRINT in set of 2 Copies with space for Sign of Driver & Receiver
- DATA DOWNLOADER: Downloads data of last 3000 batches in Pen drive in EXCEL format
- RFID CARDS & READER for authentic delivery, up to 200 cards
- COMMUNICATION PORT: RS485 Serial interface for Automation with Protocol
- EMCUBE PROTOCOL: Version EE2201.1
- METROLOGY APPROVAL: Weights and Measure approved measuring system
